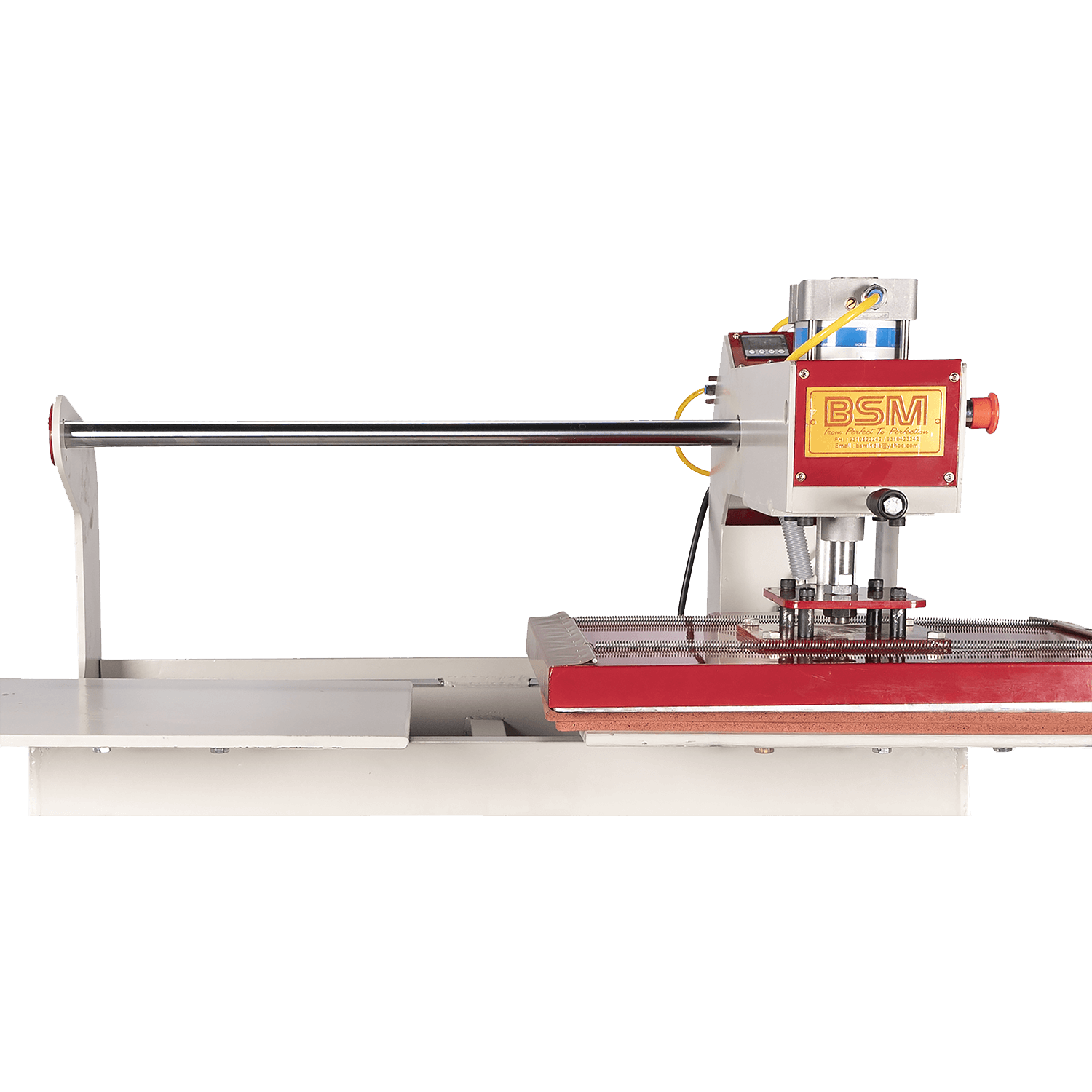

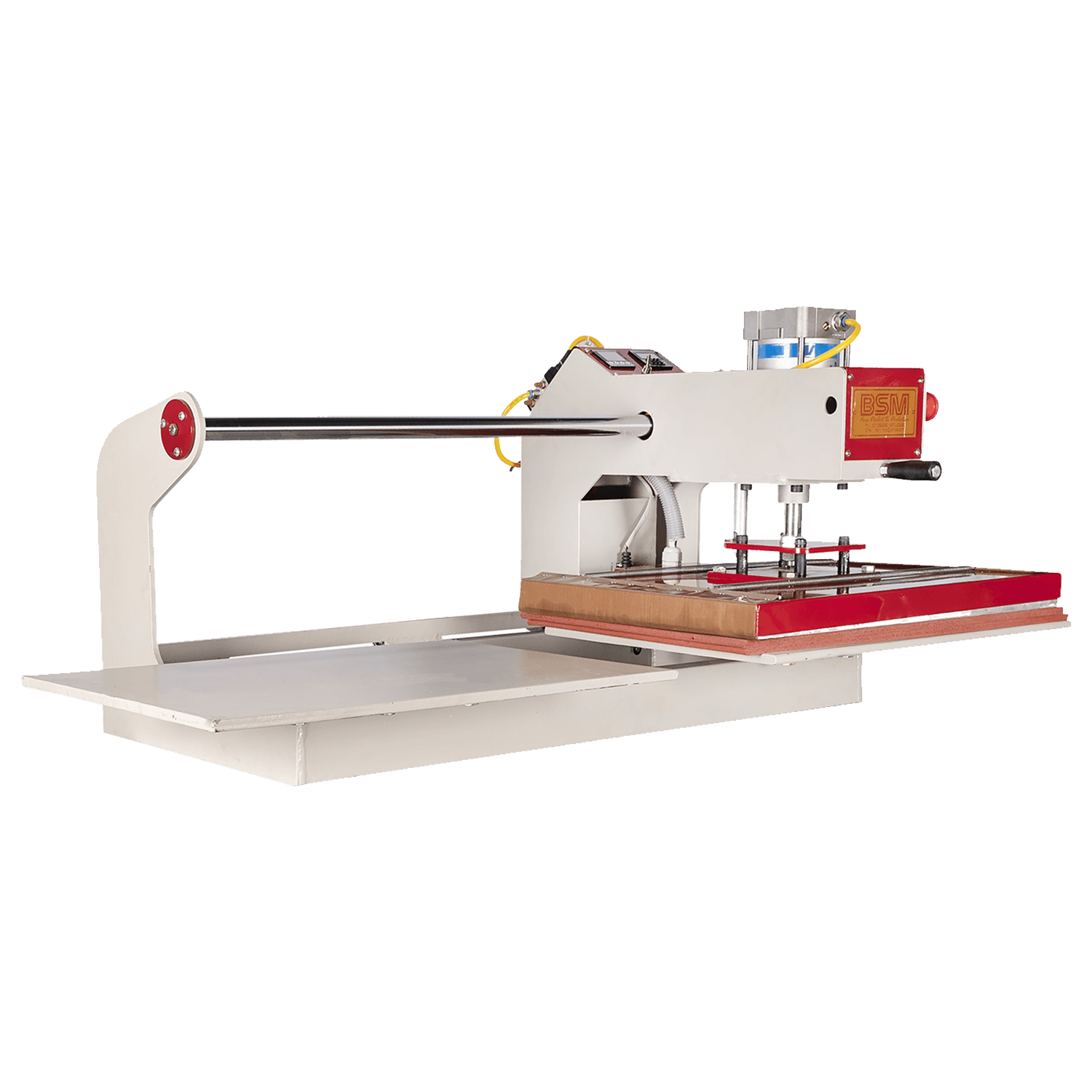

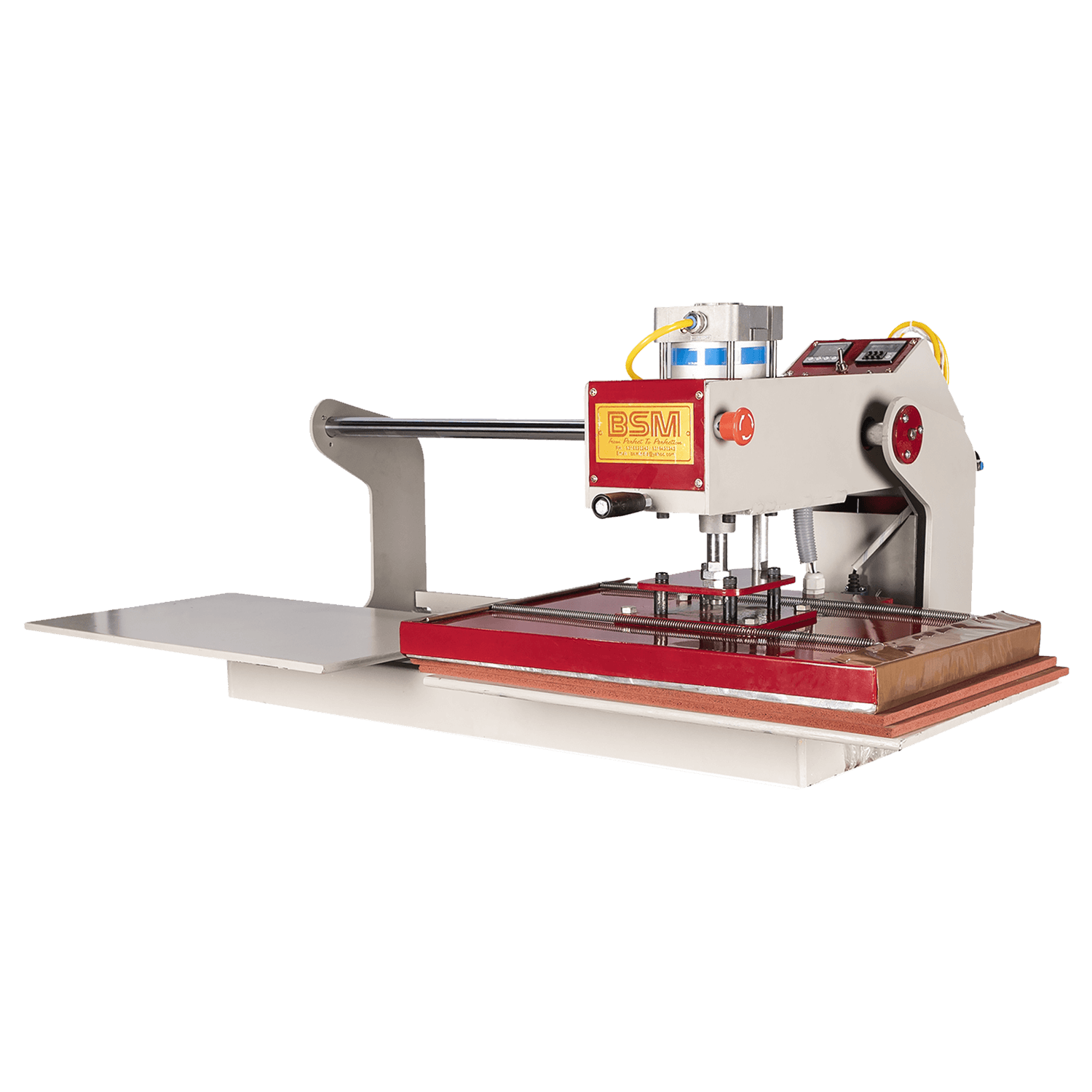

Automatic Double Bed Heat Press Machine (Head Movement)

This Machine is engineered for high-quality and efficient heat transfer applications. It features a unique design with a movable head that ensures precise and reliable fusing results.

Book a demo


  • Head Movement System: The machine utilizes a head movement system where the head moves horizontally from left to right, while the platforms remain fixed. This design facilitates easy and accurate positioning of materials for fusing.
  • Automatic Using System: Incorporates an automatic head lowering system, ensuring consistent and uniform pressure application during the fusing process.
  • Pneumatic Pressure System: Utilizes a pneumatic pressure system with adjustable pressure settings (up to 12.5 kg/cm²), enabling precise control over the fusing pressure for various materials and transfer applications.
  • Double Platform, Single Station Design: Enhances productivity by allowing simultaneous processing of two platforms, effectively doubling output and reducing production time.
  • Digital Display Temperature Controller: Equipped with a digital display temperature controller for precise temperature management (up to 300°C), ensuring optimal heat transfer conditions without overheating.
  • High-Temperature Cloth Design: Features an export-designed high-temperature cloth that enhances safety and durability during high-temperature operations.
  • Antioxidant Cast Aluminum Table and Silicone Foam Pad: The machine includes an antioxidant cast aluminum table that maintains stability at high temperatures, coupled with an elastic silicone foam pad to prevent table distortion and ensure uniform stamping and transfer quality.


Model No. BS-56
Voltage 1.5 Kw
Pressure 12.5 kg/cm2
Max Heating 300 °C
Force Pneumatic Type
Working Area 16*20 Inch


  • Regular Cleaning: Clean the machine regularly to remove dust, debris, or residue that may accumulate during operation. Use non-abrasive cleaning materials.
  • Lubrication: Lubricate the moving parts periodically. Proper lubrication ensures smooth operation and prolongs the machine’s lifespan.
  • Inspection and Adjustment: Regularly inspect the machine for any signs of wear, loose connections, or damaged components. If necessary, tighten or replace parts to maintain optimal performance.

Safety Considerations

  • Operator Safety: Prioritize operator safety by providing appropriate safety goggles and gloves. Operators should be trained in the safe operation of the machine and follow all safety guidelines.
  • Electrical Safety: Ensure the machine is properly grounded and connected to a stable power source. Follow electrical safety guidelines and avoid exposure to water or moisture.
  • Hot Surface Hazards: The fusing machine generates heat during operation. Operators should avoid direct contact with hot surfaces.
