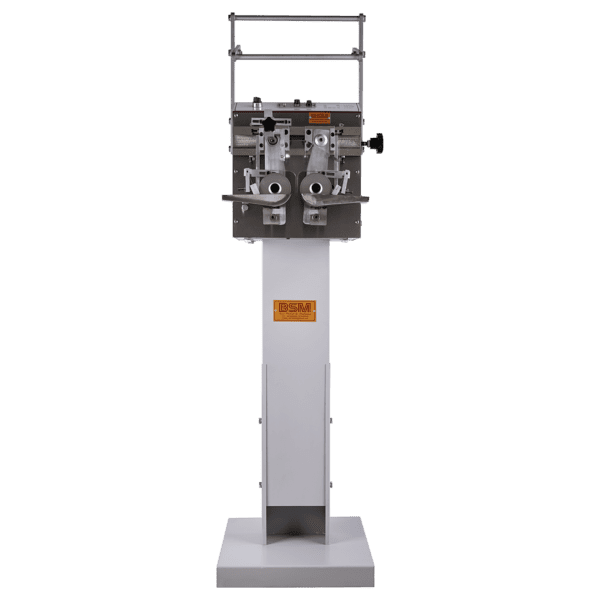

Edge Coloring Double Side (Vertical)
Versatile and user-friendly, Double Side Edge Coloring Machine is perfect for coloring belt edges on both sides simultaneously. With adjustable speed and ink flow control, it offers precise customization.
₹68,000
Description
- Dual-Side Coloring: The machine is specifically designed for coloring both sides of belts simultaneously, saving time and improving efficiency in the manufacturing process.
- Speed Adjustment system: Equipped with a speed adjustment system, the machine allows for easy control and adjustment of the working speed, ensuring optimal painting results.
- Ink Adjusting System: The machine features an ink adjusting system, enabling easy adjustment of the ink application thickness, ensuring precise and consistent edge coloring.
- Adjustable Working Width: The working width of the machine can be easily adjusted from 5mm to 70mm, accommodating a wide range of belt widths.
- Adjustable Operation Height: The operation height of the machine is adjustable, making it suitable for operators of different heights and ensuring ergonomic working conditions.
- Easy Maintenance: The machine allows for easy oil change and head cleaning, simplifying maintenance tasks and minimizing downtime.
Specifications
| Model No. | BS-37 |
|---|---|
| Work Width | 5-80mm |
| Power | 120W |
| Voltage | 220V |
| Motor | 0.5HP |
| Bandwidth Adjustable | 5-70mm |
| Coloring Thickness | 0-3mm |
| Machine Size (mm) | 500 x 500 x 1370 |
| Machine Weight | 60kg |
Maintenance
- Regularly clean the machine and remove any excess ink or debris that may affect its performance.
- Lubricate the moving parts as recommended by the manufacturer to ensure smooth operation.
- Check for loose bolts or connections and tighten them if necessary.
- Follow the manufacturer’s instructions for any specific maintenance tasks or intervals.
Safety Considerations
- Before operating the machine, verify that the voltage (110V/220V) matches the power supply voltage. Adjust the flywheel to align with the machine’s speed after powering it on.
- Fill the ink side box with side ink up to the three-quarter mark; avoid overfilling. Adjust the ink flow using the twisting nut according to the desired quantity of oil required for the product.
- When cleaning the machine, ensure the power supply is turned off. Begin by scraping off any residual oil from the side of the ink tank using a film or scraper. Then, remove the fixed nut from the ink box and rinse it immediately with water.
