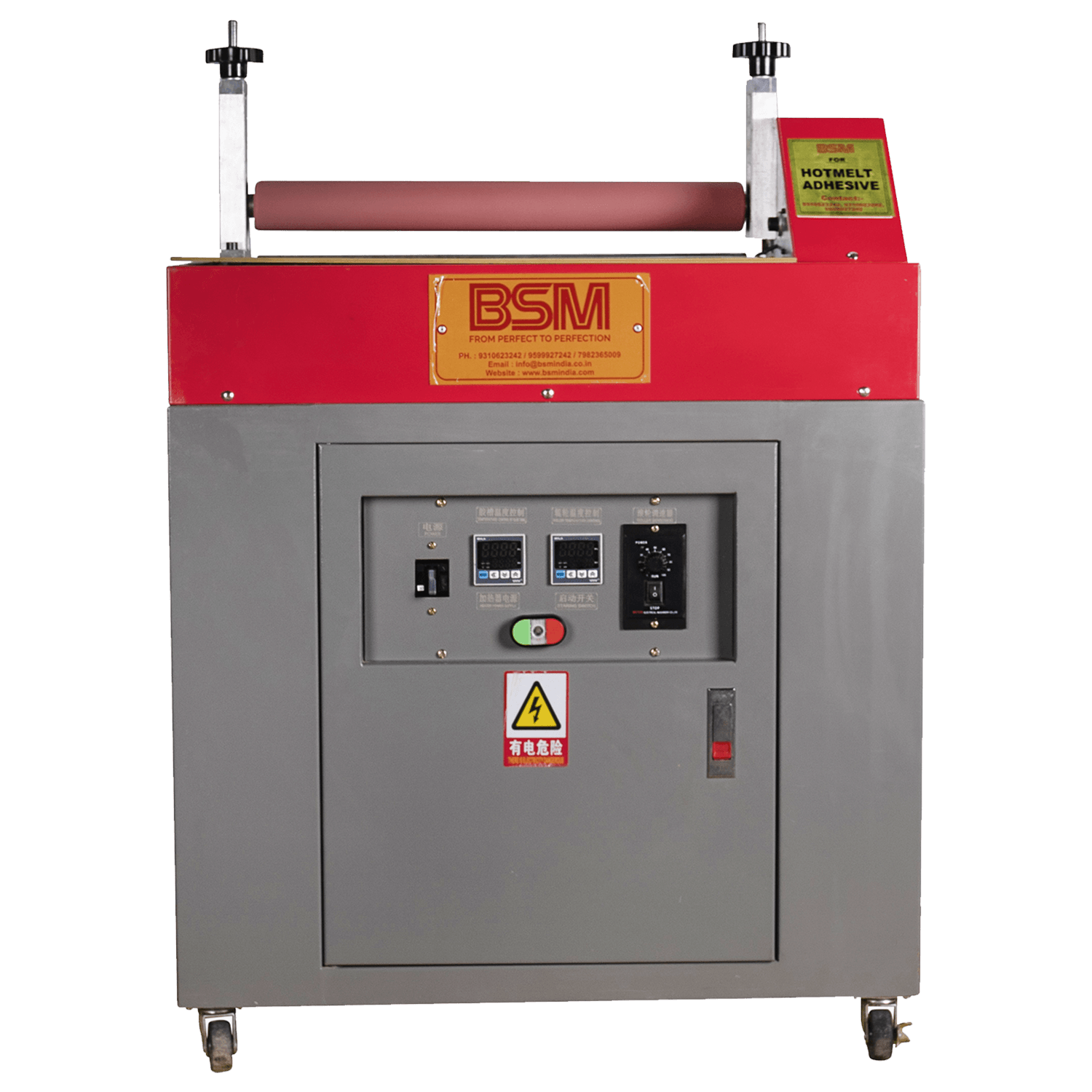

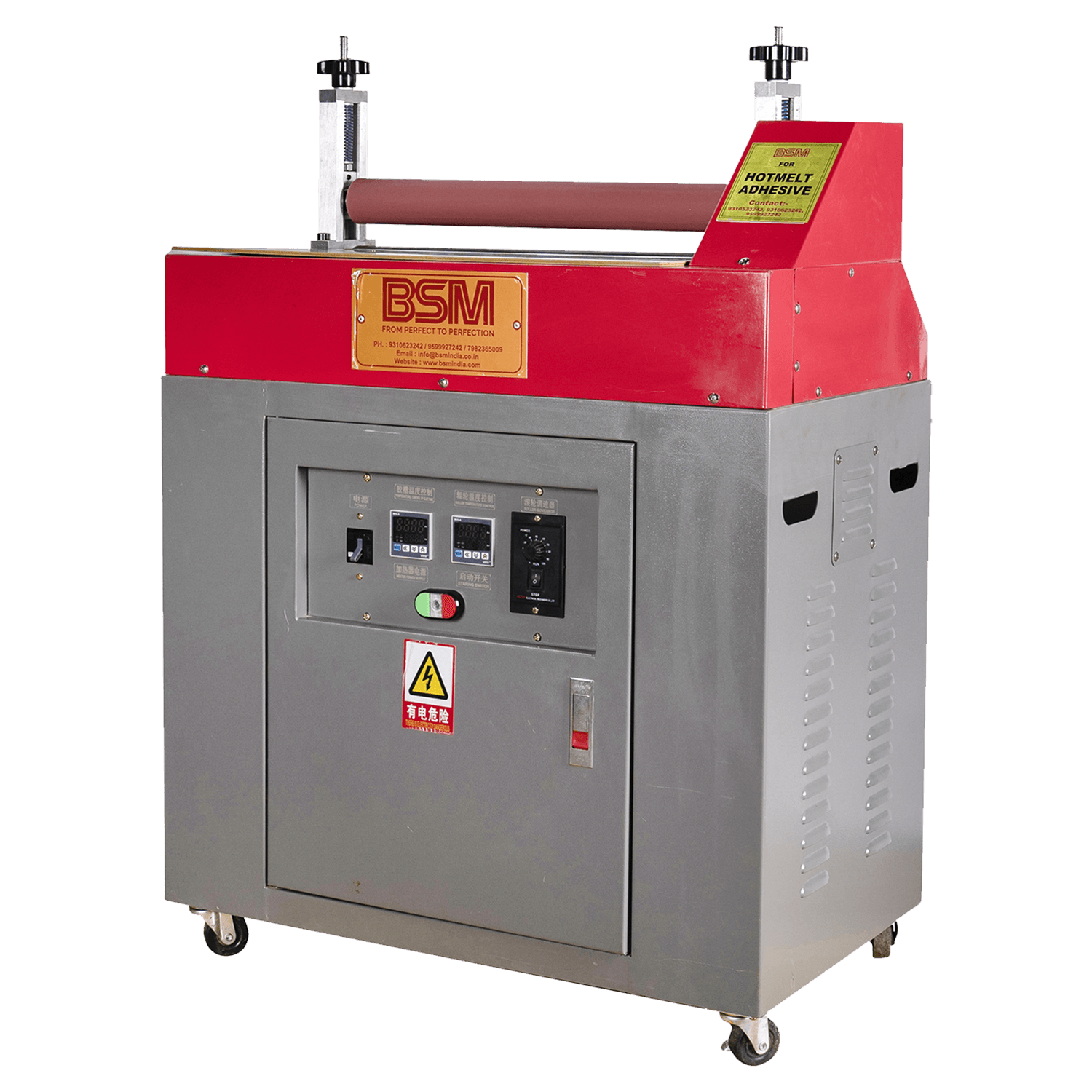

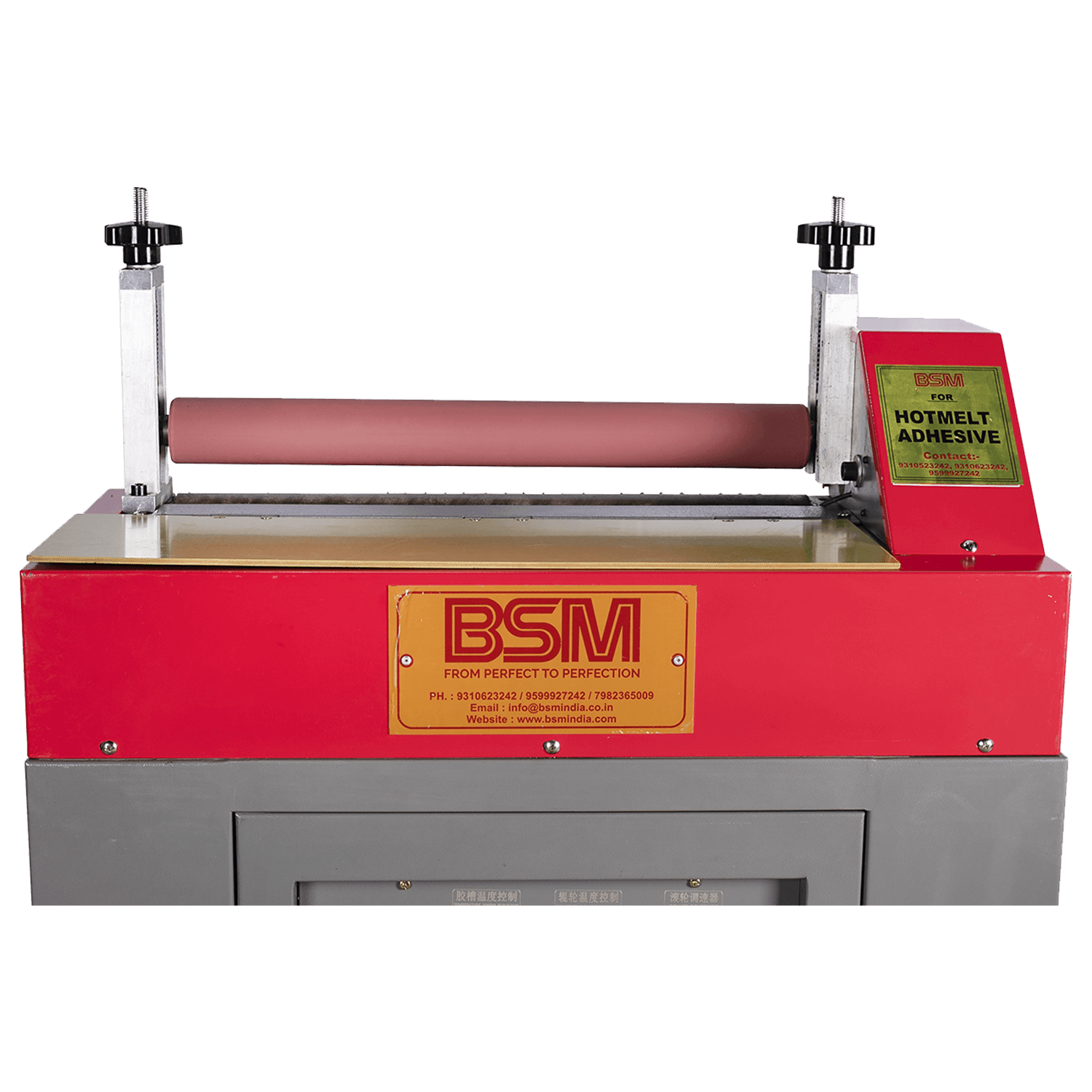

Hot Melt Adhesive Roller Coater/ Applicator Machine

Precise and accurate hot melt adhesive applicator with heated tank and heated rollers. Perfect for footwear, bags, belts, packaging, stationary, woodworking, and more.

Description

  • This applicator is suitable for Hot-Melt Adhesives, consists of heated tank, heated rollers and speed control system.
  • The machine has a thickness adjustment system and can support material thickness from 3 to 20mm
  • The heated glue tanks are treated with Teflon which help in preventing carbonization of hot melt adhesives.
  • The machine has an emergency stop button to prevent any accidents.
  • This applicator is highly recommended for footwear, bag, belt, stationery, packaging, labelling, fly traps, sporting goods etc.

Specifications

Model No. BS-831 / 831-2 / 831-3
Tank Capacity 3 kg / 5 kg / 7kg
Melting Rate 8 kgs/hour
Total Power 2.5 kW
Coating Width 300 mm / 400 mm / 500 mm
Max Operating Temperature 250°C
Power Requirement 220V/50Hz, Single Phase
Machine Dimensions 515 x 900 x 430 mm



Maintenance

  • Weekly Cleaning: Weekly clean the machine and adhesive tank to prevent adhesive buildup and contamination.
  • Temperature Control: Check and adjust the temperature control regularly to ensure that the machine is operating at the correct temperature.
  • Lubrication: Lubricate the moving parts of the machine regularly to prevent wear and tear and ensure smooth operation.
  • Inspect Rollers: Inspect the rollers regularly for wear and damage and replace them if necessary.
  • Replace Worn Parts: Replace any worn or damaged parts immediately to prevent further damage and ensure safe operation.

Safety Considerations

  • Personal Protective Equipment: Operators should wear appropriate personal protective equipment (PPE) such as gloves and aprons to prevent contact with hot adhesive and reduce the risk of injury.
  • Emergency Stop Button: The machine has an emergency stop button in case of an emergency.
  • Safety Guards: The machine has a safety guard to prevent contact with the rollers and other moving parts.
  • Proper Training: Operators should receive proper training on the operation and safety of the machine.
  • Electrical Safety: Ensure that the machine is properly grounded, and electrical connections are secure to prevent electrical shocks.
  • Fire Safety: Store the hot melt adhesive in a safe and secure location away from heat sources and open flames to prevent fires.
