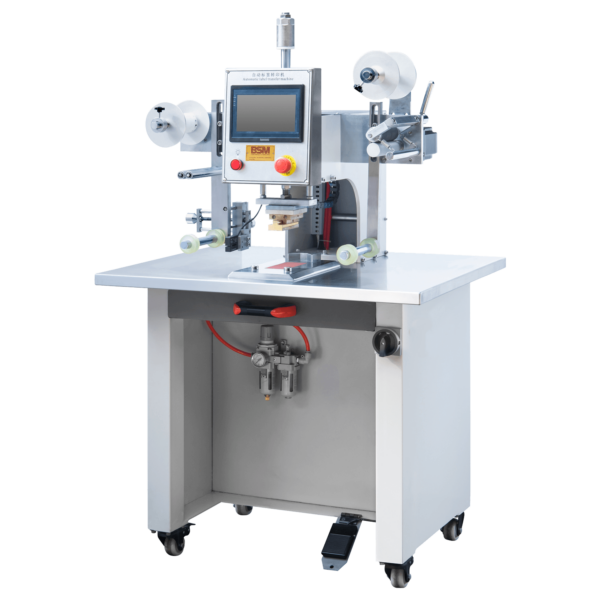

Automatic Label Fusing & Stamping Machine (Pneumatic)
This is a versatile and precise machine designed for fusing labels onto various footwear components, including tongue labels, arc insoles, and flat bottoms. It offers advanced features and uses high-quality components to ensure efficient and accurate label fusing in footwear manufacturing.
- Premium Components: This machine incorporates all imported electrical components and original air pressure components, ensuring reliability and durability in its operation.
- Advanced Control System: The control system is equipped with a PLC (Programmable Logic Controller) and a touch screen interface for user-friendly operation and precise control.
- PID Temperature Control: The temperature control system utilizes a PID (Proportional-Integral-Derivative) temperature module, which is seamlessly integrated with the touch screen. This setup eliminates the need for an additional temperature controller and provides accurate temperature control with a minimal temperature difference of around ±1°C.
- Color Discrimination: The machine features a self-assisted color discrimination function with imported color standard sensors. It can automatically distinguish between seven colors, ensuring precise positioning with adjustable sensitivity and minimal alignment differences within ±0.02mm.
- Automatic Hot Stamping: A unique hot stamping function is included, which stops hot stamping when there is no material present, preventing unnecessary operation.
- Stable Operation: Japanese stepping motors are employed for label feeding, ensuring a stable and reliable process. The machine smoothly handles circular labels and ensures consistent label delivery.
- Tape Tension Control: The unwinding system employs a motor running in reverse to maintain constant tape tension, reducing alignment variations during standard operation.
- Adjustable Power Frequency: The machine allows for the adjustment of power frequency to suit various applications while maintaining low noise levels.
- Dual Working Modes: It offers two working modes, hot stamping and hot stamping switching, providing flexibility for different label fusing requirements.
|Dimensions||850 x 680 x 1430mm|
- Regularly clean the machine to remove dust and debris that may affect its performance.
- Check for loose connections, worn parts, or signs of wear and tear, and address any issues promptly.
- Follow the manufacturer’s recommended maintenance schedule and procedures for optimal machine performance.
- Ensure that operators receive proper training on safe machine operation, including handling pneumatic components and using the touch screen interface.
- Maintain a clean and organized work area to prevent accidents and ensure smooth operation.
- Turn off the machine and disconnect it from the power source when performing maintenance, adjustments, or cleaning.
- Follow all safety guidelines provided by the manufacturer to prevent accidents and injuries.
