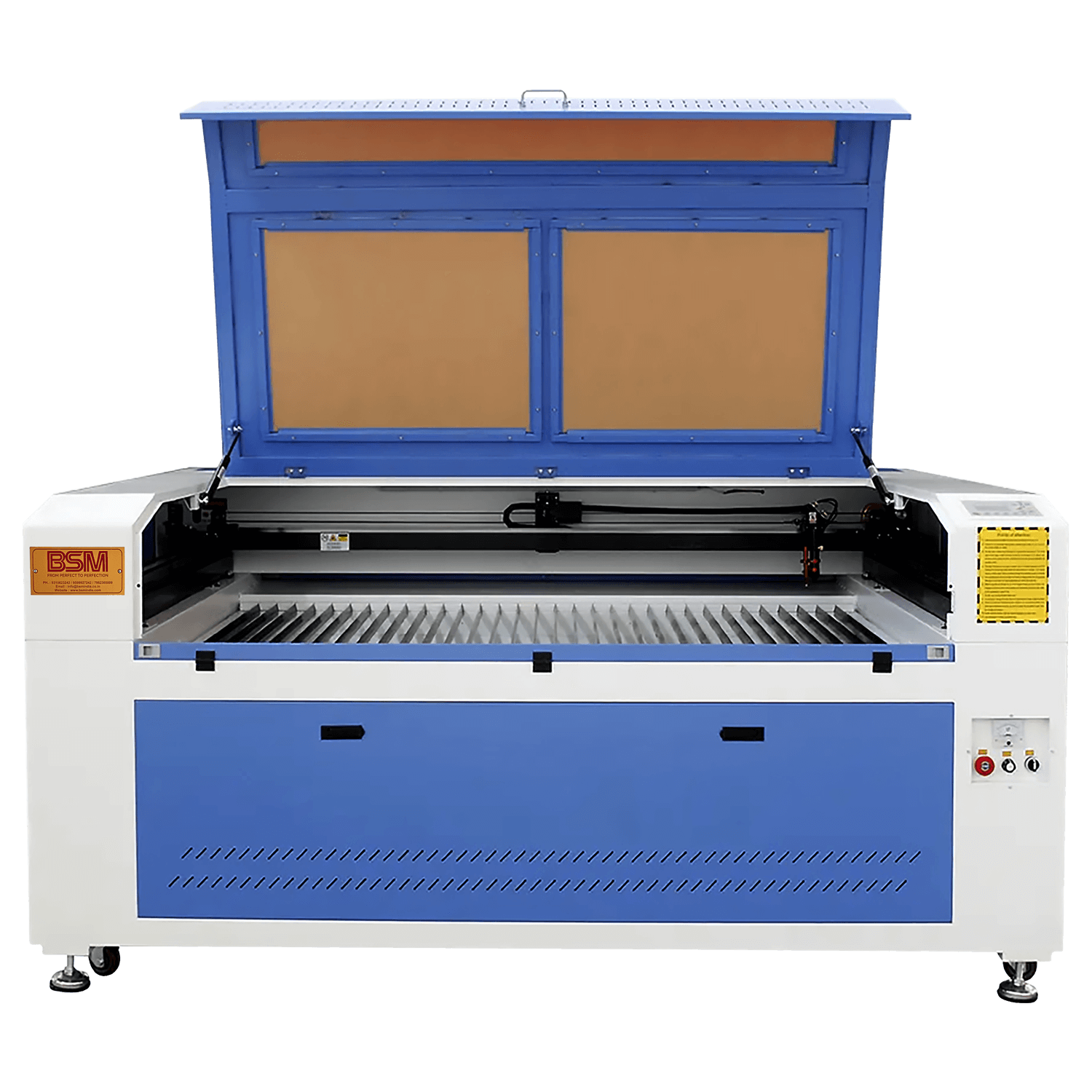

Laser Cutting & Engraving Machine with Water Cooled Chiller (Single Head)
High-performance laser machine designed for efficient cutting and engraving in industries such as Footwear, Apparels, Electronics & Embroidery. With its advanced features and precise control technology, it offers exceptional speed, accuracy, and versatility, making it an ideal choice for large-scale cutting and engraving applications.
Description
- Single Head Configuration: This machine is equipped with Single laser head, enabling simultaneous cutting or engraving operations. It maximizes productivity by reducing processing time and increasing efficiency.
- High-Speed DSP Control: The machine utilizes advanced 64-bit high-speed DSP control technology, enabling continuous and fast curve cutting. It optimizes the processing route for improved efficiency and shorter production time.
- Stable and Precise Cutting: The three-way reflective system and 6-balanced sliding type guide rails ensure stability and precision in both cutting and engraving processes.
- Wide Range of Materials: The machine is suitable for working with various non-metal materials, including cloth, leather, acrylic, rubber, wood, paper, ceramics, and more.
Specifications
| Characteristic | BS-6040 | BS-9060 | BS-1490 |
|---|---|---|---|
| Model No. | BS-6040 | BS-9060 | BS-1490 |
| Engraving Area | 600 mm x 400 mm | 900 mm x 600 mm | 1400 mm x 900 mm |
| Cutting Speed | 0-800 mm/min | 0-800 mm/min | 0-800 mm/min |
| Laser Power | 80 W | 80 W | 100 W |
| Resolution | 0.025 mm | 0.025 mm | 0.025 mm |
| Positioning Precision | <0.01 mm | <0.01 mm | <0.01 mm |
| Smallest Characters (Chinese) | 2 x 2 mm | 2 x 2 mm | 2 x 2 mm |
| Smallest Characters (Letter) | 1 x 1 mm | 1 x 1 mm | 1 x 1 mm |
| Power Supply | AC-220V+10%, 50 Hz | AC-220V+10%, 50 Hz | AC-220V+10%, 50 Hz |
| Gross Power | <1200 W | <1200 W | <1200 W |
| Working Temperature | 0°C – 45°C | 0°C – 45°C | 0°C – 45°C |
| Working Humidity | 5-95% | 5-95% | 5-95% |
| Supported File Formats | DST, PLT, BMP, DXF | DST, PLT, BMP, DXF | DST, PLT, BMP, DXF |
Maintenance
- Regularly clean and inspect the machine’s optics and guide rails to ensure optimal performance.
- Replace worn-out components, such as the laser tube, according to the manufacturer’s guidelines.
- Keep the working area free from debris and dust accumulation to prevent interference with the laser beam.
Safety Considerations
- Always wear appropriate personal protective equipment, including safety goggles and gloves, when operating the machine.
- Ensure proper ventilation in the workspace to dissipate any fumes generated during cutting and engraving processes.
