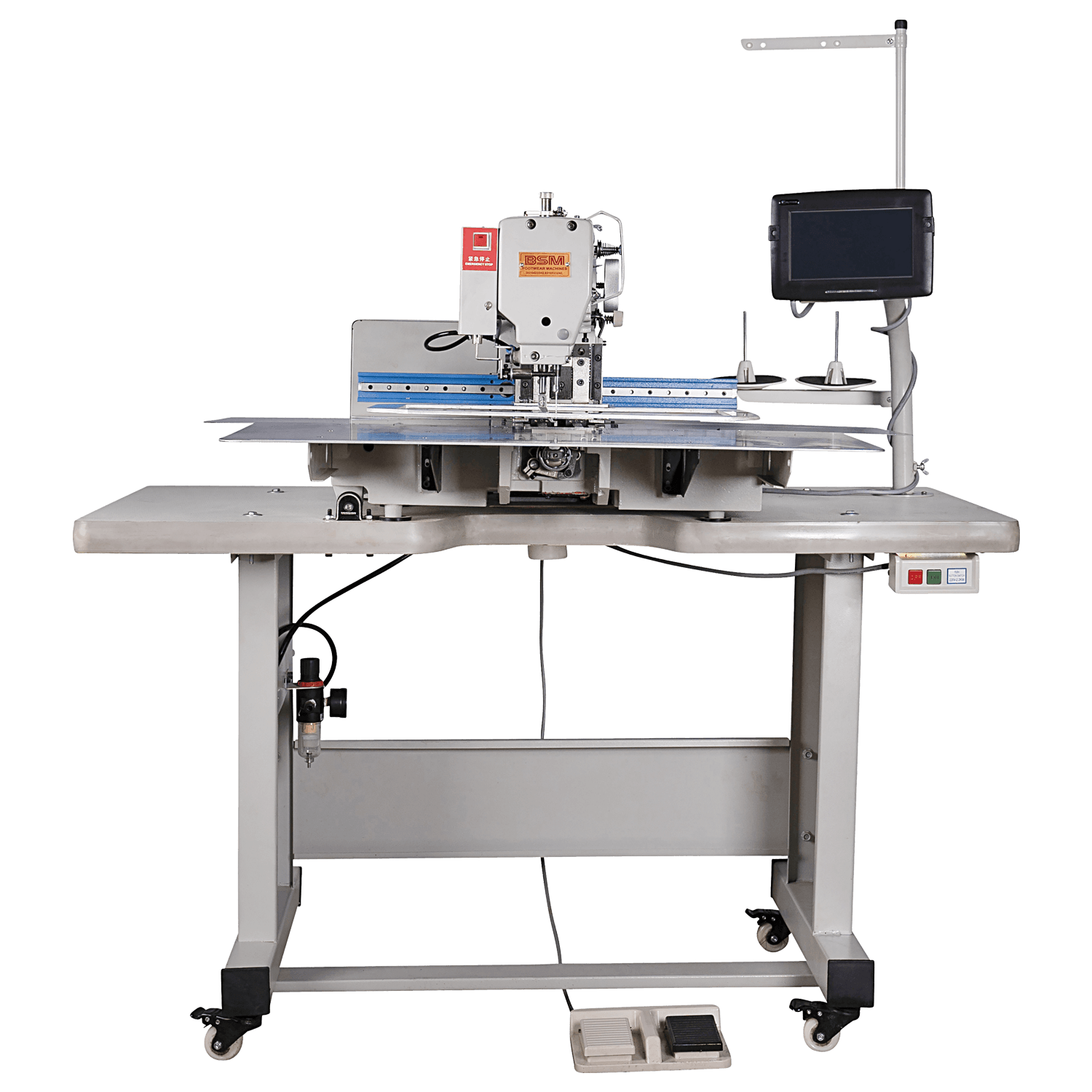

Automatic Computerized Pattern Sewing Machine

This is a state-of-the-art sewing machine designed to streamline and automate the production of intricate patterns and designs. With its advanced computerized technology, this machine offers precise stitching and high-speed operation, making it an ideal choice for various industries such as apparel, automotive, upholstery, and home textiles.

Book a demo

Description

  • Computerized Operation: The machine is equipped with advanced computerized technology that allows for precise and automated stitching of complex patterns. Users can create and input custom designs through the machine’s user-friendly interface, eliminating the need for manual pattern marking and reducing production time.
  • Large Sewing Area: With a spacious sewing area of 300*200mm, this machine offers ample space to sew large-scale patterns and designs. The generous sewing area enables the creation of intricate and detailed designs on a wide range of fabrics and materials.
  • High-Speed Performance: The Automatic Computerized Pattern Sewing Machine is capable of high-speed stitching, significantly increasing productivity and efficiency. The machine’s precise motor control and optimized thread tension system ensure consistent stitch quality, even at high sewing speeds.
  • Versatile Stitching Options: This machine offers a wide range of stitching options, including straight stitching, zigzag stitching, decorative stitching, and more. With the ability to customize stitch length, width, and density, users can achieve a variety of design effects and meet diverse application requirements.

Specifications

Model BS-2010 BS-3020 BS-6040
Sewing type SINGLE NEEDLE LOCKSTITCH
Max sewing speed 2,800 RPM 2,800 RPM 2,800 RPM
Stitching area 200×100 mm 300×200 mm 600×400 mm
Cloth feeding device INTERMITTENT FEEDING (DRIVEN BY PULSE MOTOR)
Needle gauge 0.05 -12.7mm
Can be saved by code 50000 STITCHES/ SEWING PATTERN
Highest sewing stitched for each pattern 20000(A PATTERN)
Storage SD CARD BUILT-IN MEMORY:2GB, 900 KINDS
Clamp drive PNEUMATIC
Clamp height Max 35 mm
Clamp lowest ONE-PIECE PRESSURE FOOT
Pressure foot lift up 22 mm
Intermittent pressure foot 0.2-4.5 mm OR 4.5 mm (FACTORY SETTINGS:3 mm)
Shuttle (hook) DOUBLE HOOK(STANDARD)
Thread wiper device STANDARD EQUIPMENT
Trimmer device STANDARD EQUIPMENT
Date memory FLASH MEMORY(CAN SAVE WITH SD CARD) 3 INCH DISK 2HD/1.44BM.2DD,USB INTERFACE
No. of user programs 50
Loop program number 9
Motor SERVO MOTOR 750W
Weight HEAD: 160 kg, OPERATING PANEL: 0.6 kg, CONTROL BOX: 16.2 kg
Power SINGLE PHASE 220V 3-PHASE 200V/380V/400V 500VA
Air pressure 0.5 Mpa 1.81/min

Maintenance

  • Regular Cleaning: Remove dust, and fabric remnants from the machine using a soft brush or vacuum. Clean the bobbin case, feed dogs, and needle plate to prevent any build-up that may affect the machine’s performance.
  • Lubrication: Apply sewing machine oil to the designated points. Regular lubrication reduces friction, extends the machine’s lifespan, and ensures smooth operation.
  • Needle Replacement: Replace the needle regularly, especially when it becomes dull or bent. A sharp needle ensures clean and precise stitching.
  • Professional Servicing: Consider taking your sewing machine for professional servicing Periodically. This helps identify any potential issues and ensures optimal performance.

Safety Considerations

  • Power Off: Always turn off the machine and unplug it when not in use, during maintenance, or when changing needles or accessories.
  • Needle Handling: Use caution when handling needles, as they are sharp. Avoid placing your fingers near the needle area while the machine is running.
  • Workspace Organization: Maintain a clean and organized workspace, free from clutter and potential hazards that could interfere with the machine’s operation.
  • Safe Operation: Follow proper threading procedures, adjust the tension correctly, and use appropriate settings for the material being stitched. Keep hands and fingers away from moving parts and the needle area during operation.
