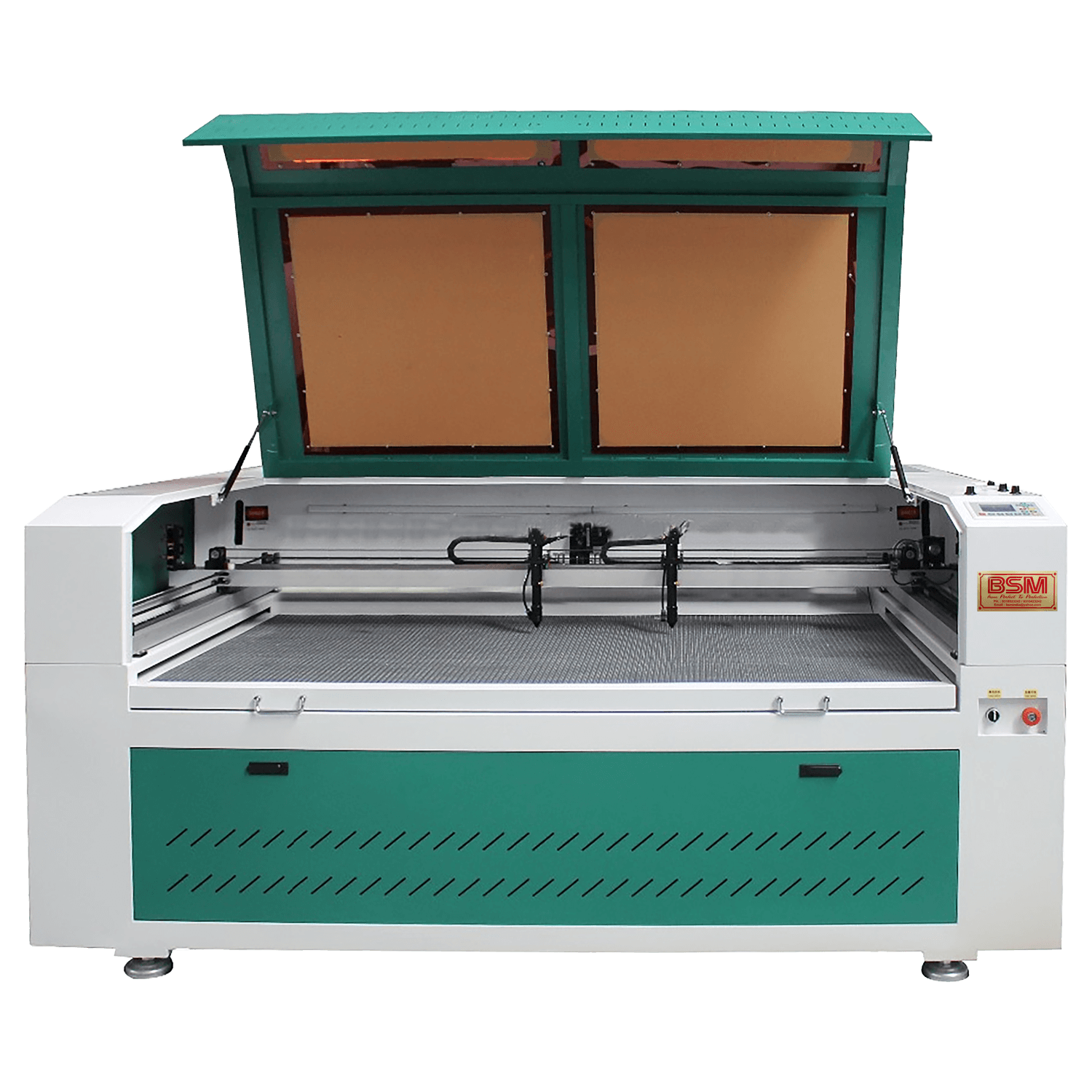

Laser Cutting & Engraving Machine with Water Cooled Chiller (Double Head)
High-performance laser machine designed for efficient cutting and engraving in industries such as Footwear, Apparels, Electronics & Embroidery. With its advanced features and precise control technology, it offers exceptional speed, accuracy, and versatility, making it an ideal choice for large-scale cutting and engraving applications.
Description
- Double-Head Design: Features two laser tubes coordinating with two laser heads, ideal for large-scale embroidery and cutting tasks, significantly increasing output.
- High-Speed DSP Control: Utilizes advanced 64-bit high-speed DSP control technology for continuous and fast curve cutting with optimized processing routes, improving efficiency.
- Precision and Efficiency: Incorporates a three-way reflective system and 6-balanced sliding-type guide rails to ensure high precision and efficiency in cutting or engraving tasks.
- Applicable Materials: Suitable for cutting and engraving a wide range of materials, including cloth, leather, acrylic glass, acrylic plastic, rubber, tiles, wood, bamboo products, fur, paper, ceramics, etc.
- Applicable Industries: Widely used in garment, shoe, box, computer-based embroidery cutting, model, electronics, toys, furniture, decoration, packing, printing, paper products, craft industries, etc.
Specifications
| Model No. | BS-9060D | BS-1480D |
|---|---|---|
| Engraving Area | 900mm x 600mm | 1400mm x 800mm |
| Cutting Speed | 0-64000 mm/min | 0-64000 mm/min |
| Laser Power | 60w, 80w, 100w | 60w, 80w, 100w |
| Resolution | 0.025 mm | 0.025 mm |
| Precision of Positioning | <0.01mm | <0.01mm |
| Smallest Characters (Chinese) | 2 x 2 mm | 2 x 2 mm |
| Smallest Characters (Letter) | 1 x 1 mm | 1 x 1 mm |
| Power Supply | AC-220V+10%, 50 Hz | AC-220V+10%, 50 Hz |
| Gross Power | <1200 w | <1200 w |
| Working Temperature | 0°C-45°C | 0°C-45°C |
| Working Humidity | 5-95% (Non-condensed water) | 5-95% (Non-condensed water) |
| Graphic File Format Supported | PLT, CDR, AI, DWG, DXF, DST, BMP, JPEG, TIFF, GIF, PCX, TGA, etc | PLT, CDR, AI, DWG, DXF, DST, BMP, JPEG, TIFF, GIF, PCX, TGA, etc |
Maintenance
- Regularly clean and inspect the machine’s optics and guide rails to ensure optimal performance.
- Replace worn-out components, such as the laser tube, according to the manufacturer’s guidelines.
- Keep the working area free from debris and dust accumulation to prevent interference with the laser beam.
Safety Considerations
- Always wear appropriate personal protective equipment, including safety goggles and gloves, when operating the machine.
- Ensure proper ventilation in the workspace to dissipate any fumes generated during cutting and engraving processes.
