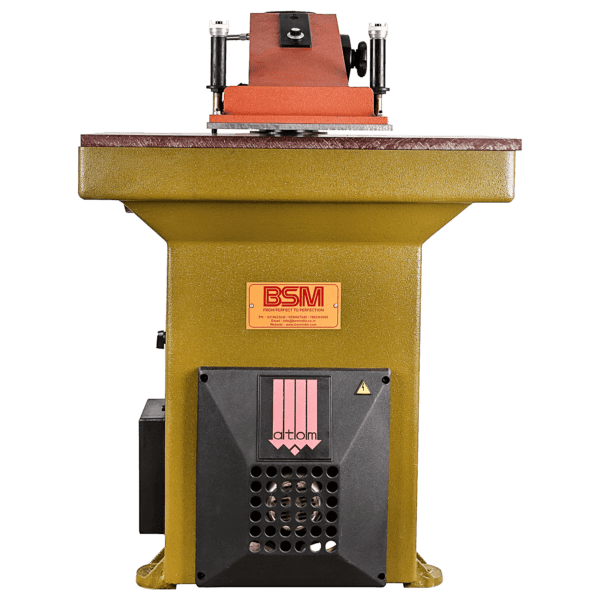

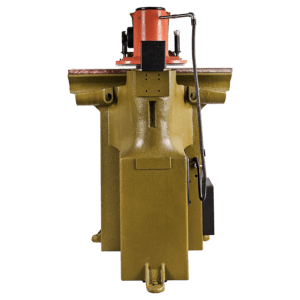

Swing Arm Cutting Press (Hydraulic)

A versatile and efficient solution for precise material cutting. It is perfect for small to medium-sized production runs in leather, automotive, apparel, and footwear industries. With a hydraulic system, adjustable stroke control, and low energy consumption, it offers reliable performance and easy maintenance.

Description

This machine is suitable for cutting various non-metallic materials like Leather, Fabric, Rexin etc
High quality stainless tubes are used and are processed into pillars which guarantees flexibility in Arm rotation.
The Special Oil lubrication system ensures easy rocker height adjustment system. No further adjustments are required after the height of die cutter is changed.
High speed and low energy consumption. Requires power of only 0.75KW and can generate a cutting force of 22T
The machine has an Inbuild pressure adjustment system, to increase or decrease the cutting force as per the type of material and cutting dies.
Compact size and user-friendly controls ideal for small to medium-sized production runs.

Specification

Model No.	BS-200
Max. Cutting Force	22 Ton
Area of Work Table	900 x 430mm
Cutting Area	370 x 490mm
Motor Power	750W
Machine Dimensions	900 x 820 x 1400mm
Packing Size	1050 x 1000 x 1500mm
Weight	740Kg

Maintenance

Requires minimal maintenance thanks to its high-quality construction and design.
Regular cleaning of the cutting bed and cutting head is recommended to ensure safe and efficient operation.
Lubrication of the moving parts should be done periodically to ensure smooth movement and prevent wear and tear.

Safety Considerations

The cutting head is designed with double operational buttons to prevent operator injury.
Operators should receive proper training before operating the machine.
